4 Ton Two Post Lift AMT-26U

4 Ton Two Post Lift AMT-26U

4 Ton Two Post Lift – AMT-26U 4,000KG Electro-Hydraulic 2-Post Car Lift – Base frame-Free Design, Automatic Arm Restraints, Telescopic Pickup Arms, Upper Limit Protection, Low Noise Operation, Single/Three Phase Power Compatibility

AMT-26U 4,000KG Electro-Hydraulic Car Lift based on the details in the PDF:

Feature Specification
Model No. AMT-26U
Lifting Capacity 4,000 kg
Max. Lifting Height 1,900 mm
Min. Height 98 mm
Dimension (L x W x H) 2905 mm x 2880 mm x 3880 mm
Power Supply & Motor 1PH: 3HP, 4P, 220V, 50/60Hz

3PH: 3HP, 4P, 220/380V, 50/60Hz
Net Weight 760 kg
Key Features – Automatic Arm Restraints

– Telescopic Pickup Arms

– Piston-Type Cylinders

– Upper Limit Protection Bar

– Baseframe-Free Design

– Low Noise Operation

– Manual Lock Release

– Door Guard Rubber
Category:

Description

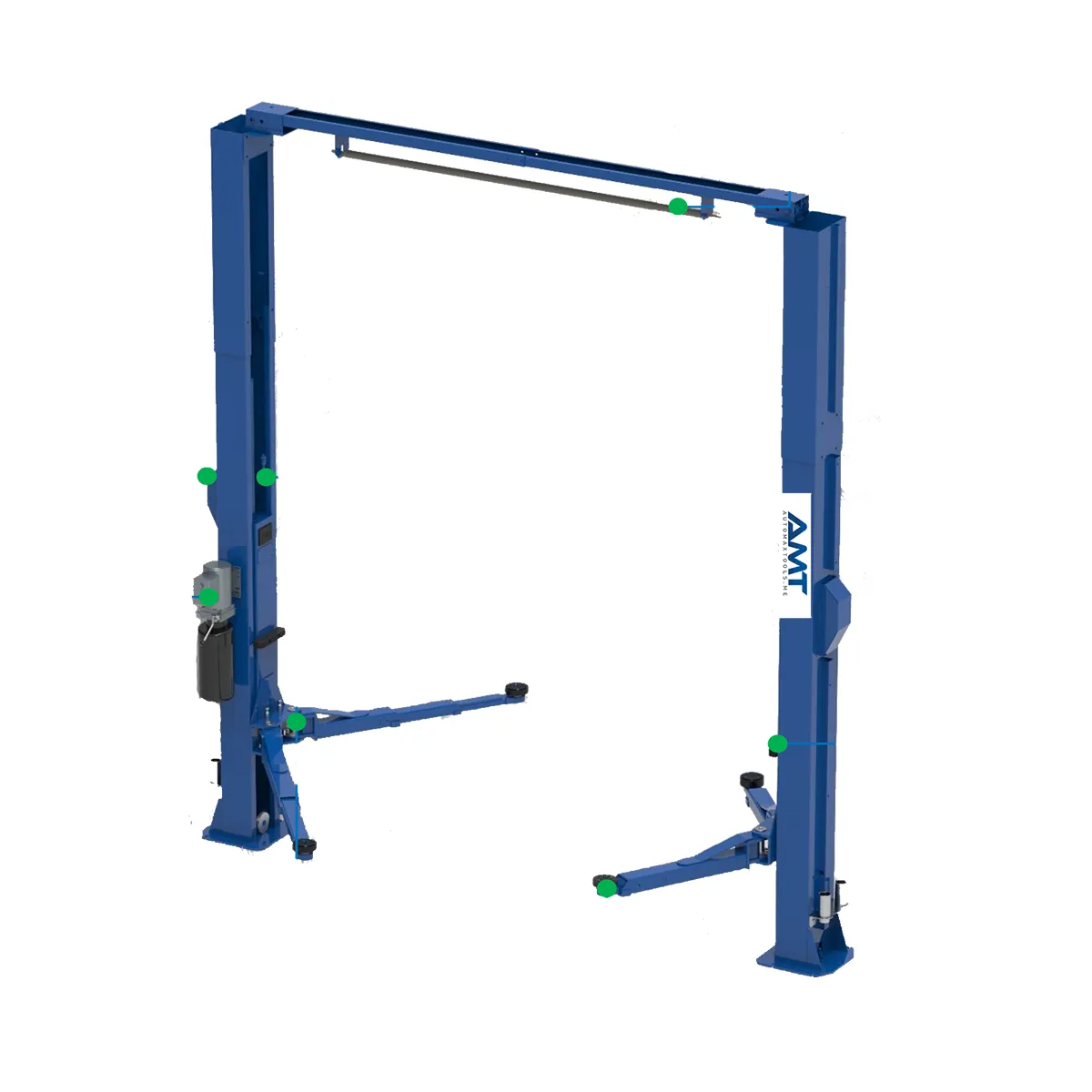

4 Ton Two Post Lift AMT-26U

AMT-26U 4,000KG Electro-Hydraulic 2-Post Car Lift

The AMT-26U is a premium 2-post car lift designed for professional workshops and garages. With its robust design and advanced features, this lift ensures efficient, safe, and hassle-free vehicle maintenance and repair operations. Its 4,000kg lifting capacity and innovative engineering make it ideal for handling a wide range of vehicles.

Weight 760 kg
Dimensions 290 × 288 × 388 cm

Key Features

1. High Lifting Capacity

With a maximum lifting capacity of 4,000kg, the AMT-26U is capable of lifting vehicles of varying sizes, from compact cars to SUVs and light trucks.

2. Electro-Hydraulic Design

The energy-efficient electro-hydraulic system ensures smooth and quiet operation, making it perfect for professional settings with minimal noise disturbances.

3. Automatic Arm Restraints

The lift is equipped with automatic arm restraints that lock the supporting arms securely during operation. These restraints release automatically when the lift is fully lowered, ensuring convenience and safety.

4. Telescopic Pickup Arms

Multiple telescopic pickup arms are designed to reach and secure pickup points for vehicles of all sizes, ensuring flexibility and ease of use.

5. Piston-Type Cylinders

High-pressure piston-type cylinders in each column provide maximum lifting force and smooth operation, ensuring durability and reliability.

6. Upper Limit Protection Bar

A safety limit bar prevents the vehicle from being lifted too high, protecting taller vehicles from damage.

7. Baseframe-Free Design

The column design eliminates the need for a baseframe, removing floor obstructions and ensuring ease of movement and accessibility in your workspace.

8. Safety and Convenience Features

  • Manual Lock Release: Easy-to-use, manually operated lock release mechanism for added control.
  • Door Guard Rubber: Protects vehicle doors from scratches and damage during operation.

Specifications

Specification Details
Model Number AMT-26U
Lifting Capacity 4,000 kg
Maximum Lifting Height 1,900 mm
Minimum Height 98 mm
Dimensions (L x W x H) 2905 mm x 2880 mm x 3880 mm
Power Supply & Motor – Single Phase: 3HP, 4P, 220V, 50/60Hz

– Three Phase: 3HP, 4P, 220/380V, 50/60Hz
Net Weight 760 kg

Why Choose the AMT-26U?

The AMT-26U combines innovative engineering, user-friendly features, and robust construction to deliver exceptional performance and reliability. Its low noise operation, enhanced safety measures, and versatile design make it an ideal choice for garages and workshops looking to optimize efficiency and ensure superior service quality.
