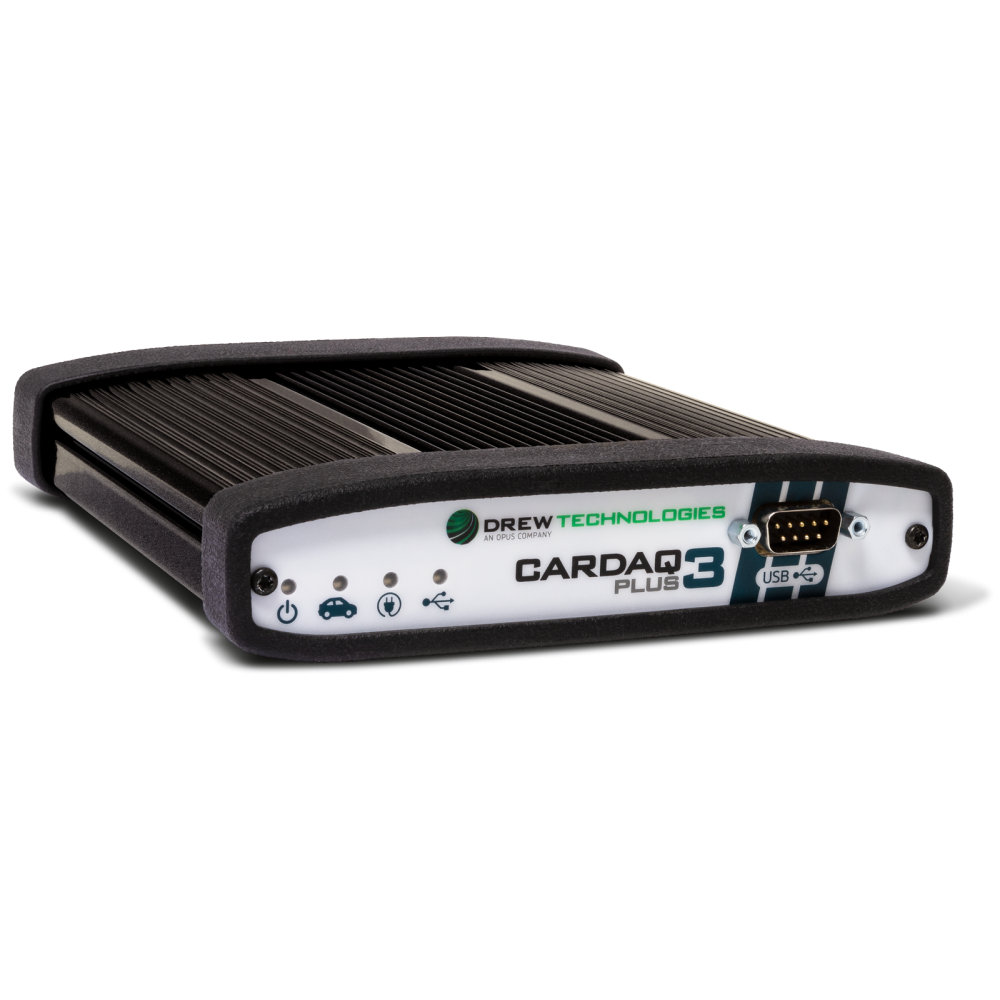

CarDAQ-Plus 3 Reprogramming:
• All-makes, all-model SAE J2534 reprogramming
• SAE J2534-1: CarDAQ-PLUS 3 is the most advanced device for reprogramming of ALL OEM with the use of their OEM provided software
• SAE J2534-2: CarDAQ-PLUS 3 offers extra J2534-2 support that expands reprogramming beyond just the Engine/Trans modules for GM, Ford, Chrysler, Toyota, Honda, Audi, VW, BMW, Volvo and more!

J2534 OEM Diagnostics:

• GM – Tech2Win (PC-based Tech2 software)
• GM – Global Diagnostic System (GDS2)

• FCA-WiTech 2.0 • Ford – Ford J2534 Diagnostic System (FJDS) & Ford Diagnostic & Repair System (FDRS)

• VW/Audi (VAG) – Offboard Diagnostic Information System (ODIS)
• Toyota – TechStream
• BMW/Mini – ISTA
• Jaguar/LandRover – IDS & SDD
• Volvo – VIDA (Volvo Information & Diagnostics for Aftersales (VIDA)

• Mitsubishi – Multi Use Tester III Special Edition (MUT3-SE)

• Nissan – Consult III Plus R2R

• Subaru – Subaru Select Monitor 4 (SSM4)

• Mercedes Benz – Pass Thru Programming System
• Honda – Honda Diagnostic System (i-HDS)

Vehicle Security Professionals:
• Technicians and Locksmiths use the CarDAQ-PLUS 3 for Security Key systems/reprogramming on all vehicle makes supported by the OEM and through the NASTF SDRM model.

Technical Support:
• J2534 Toolbox 3 – Your personal assistant to help you thru the process, including: videos, walk through help guides, FAQ’s, and other online support.

* J2534 typically requires a subscription fee charged by the car manufacturer.* NOTE: Subject to subscription availability worldwide, as regional differences may apply.

Product Specifications

Bus Protocols:
• CAN Bus (capable of CAN FD, ISO 15765, GMLAN, J1939, and ISO14229)
• 3 CAN Channels (FD CAN, Dual Wire)

• 1 Single wire CAN
• Ford SCP (J1850PWM)
• GM Class2 (J1850VPW)
• KWP2000 (ISO9141/14230)
• Chrysler SCI (J2610)
• And more!

PC Interface:
• USB version 1.1 or higher

Other Information:
• Compliant to SAE J25344(Feb 2002) and SAE J2534-11(Dec 2004)
• Compliant to ISO 22900-11MVCI physical layer
• Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14, or Aux
• Ground pins 9, 12, or 15

Operating System Compatibility:
• Supports Windows Vista (32/64-bit), and Windows 7 (32/64-bit)), Windows 8 (32/64-bit), Windows 10 (32/64-bit).
• Consult OE website for their PC requirements

Product Specifications:
• Operating voltage: 7 – 36 Volts
• Dimensions (approx): 1.5”H x 6.5”D x 6”W
• Operating Temperature: Commercial Range (0 C to +70 C)
