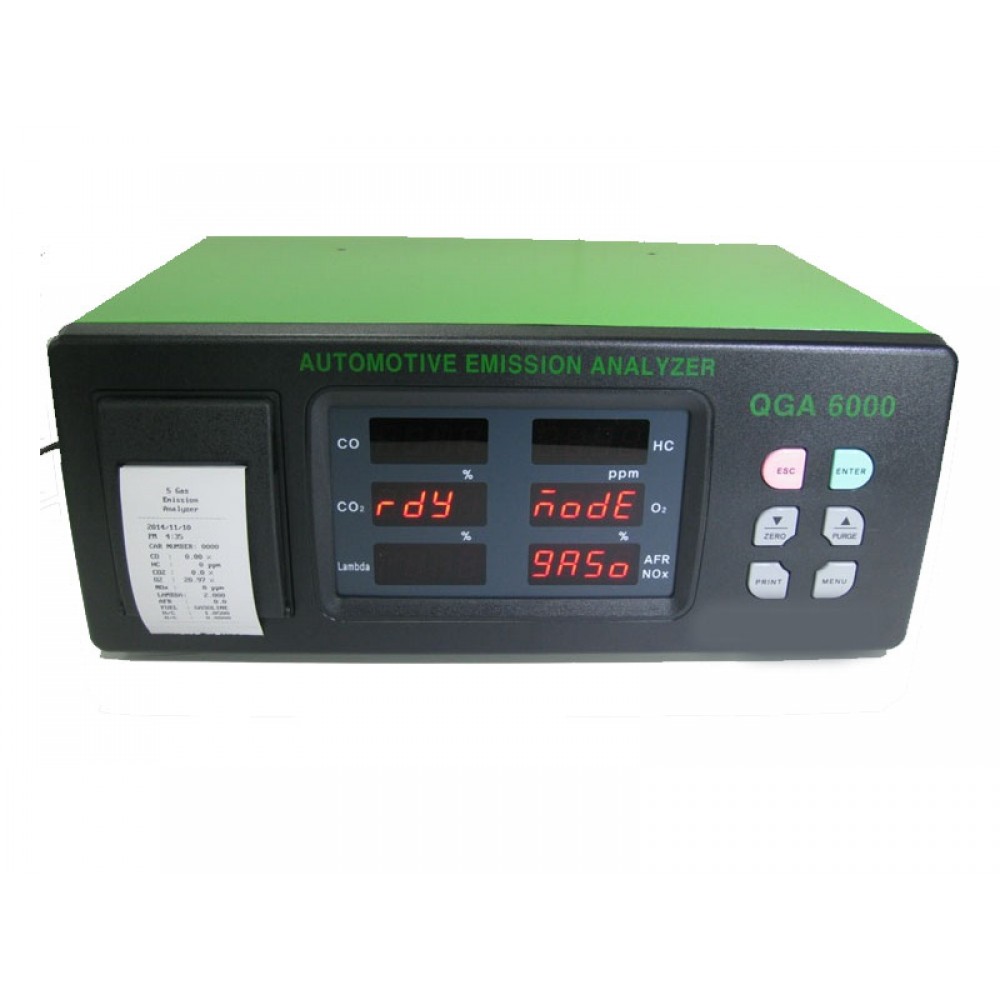

QGA6000 5 Gas Analyser
  1. QGA6000 5 Gas Analyser
  2. QGA6000 5 Gas Analyser - Image 2
  3. QGA6000 5 Gas Analyser - Image 3
  4. QGA6000 5 Gas Analyser - Image 4

QGA6000 5 Gas Analyser

Brand: Qrotech
Product Code: QGA6000-5
Availability:  In Stock
Category:

Description

QGA6000 5 Gas Analyser



Product Description

Advanced, high quality, portable 5 gas analyser including built in printer and pc interfacing program

Why use this tool?

  • Helps diagnose diesel engine faults – quicker and more easily
  • Tests for harmful gas emissions
  • Suitable for performance tuning and environmental testing and easily interfaces with chassis dynamometers. (Note: Standard exhaust probe not designed to withstand high temperatures for extended periods)
  • Excellent for testing on all types of diesel systems: cars, light trucks, heavy trucks, off-road vehicles
  • Supplied with PC interface SW to record, graph and print A4 customer reports or save to your CRM data base service records
  • Measures 5 gases, including Nox
  • Numerous other applications, can also be used to measure gasoline emissions and Hydrocarbon leaks, Head gaskets, purge control systems



What Can be diagnosed from a diesel gas test?

  • EGR Valve blocked, or permanently closed
  • EGR Valve permanently open
  • Oil burning due to leaking seals / faulty turbo
  • Injector leaks
  • Mechanical misfire
  • Blocked air filter

– Excellent precision, stability and durability

– Response time of less than 10 seconds

– Stand-by feature to prolong the life of pump and low power consumption

– Automatic warm up time – 2~8 minutes

– RS232 PC-Link kit included (software and cables)

– Elegant Aspect – portable (compact, light weight)

– Sufficient additional filters provided – 4 stages of filtration for internal protection

– Compatible with Dyno applications (Note: Standard exhaust probe not designed to withstand high temperatures for extended periods)

– Leakage test to verify hose, probe condition

– Official software Tests of Emissions

– Test of residue of HC

– External printer included for instant printout of test results

  • Product Specifications – QGA6000 4 gas analyser

    Target Subject : CO, HC, CO2, O2, Lambda (Excess Air Ratio), AFR, NOX

    Sensor Theory : CO, HC, CO2:  Non-Dispersive Infrared Analysis (NDIR)

    O2, NOX:        Electrochemical Cell

    CO

    Analysis Range: 0.00 – 9.99 %

    Resolving Power: 0.01 %

    Display: 4 digit 7 segment LED

    HC

    Analysis Range: 0 – 15,000 ppm

    Resolving Power: 1 ppm

    Display: 4 digit 7 segment LED

    CO2

    Analysis Range: 0.0 – 20.0 %

    Resolving Power: 0.10 %

    Display: 4 digit 7 segment LED

    O2

    Analysis Range: 0.00 – 25.00 %

    Resolving Power: 0.01 %

    Display: 4 digit 7 segment LED

    LAMBDA

    Analysis Range: 0 – 2.000

    Resolving Power: 0.001

    Display: 4 digit 7 segment LED

    Air Fuel Ratio

    Analysis Range: 0.0 – 99.0

    Resolving Power: 0.1

    Display: 4 digit 7 segment LED



    Repetition Rate: Lower than +/- 2 % FS

    Response Time: Within 10 seconds (90 % of the time)

    Preheat Time: Approx. 2-8 minutes

    Sample Requirement: 4 – 6 L/min

    Voltage Use: AC110v or AC220v  +/- 10%, 50/60 Hz

    Power Consumption: Approx 50 W

    Category Temperature: 0 % – 40’C

    Size: 420 (W) * 298 (D) * 180 (H) mm

    Weight: Approx 6.9kg

    Included Accessories: Probe, Probe Hose, Emergency Fuse, Water Leak Testing Cap, Emergency Filter, Instruction Manual, Power Cord, Ground Wire, and Type Approval Certificate.
